Stainless steel mat. no.: 1.4401, 1.4362

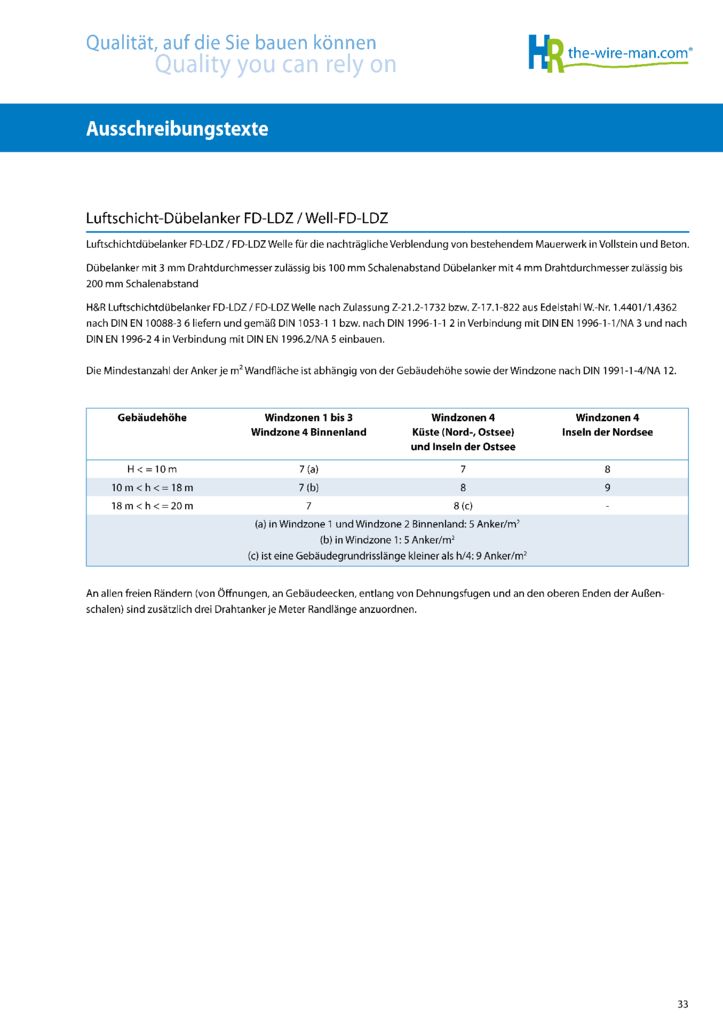

Incl. Nylon dowel with round collar for 8 mm drill hole and impact pipe. The Ø 3 mm wire anchors may be used for shell spacings (spaces between shells) ≤ 100 mm and for wall areas up to a height of 10 m above ground, the Ø 4 mm wire anchors for shell spacings ≤ 250 mm and for wall areas up to a height of 25 m above Terrain.
Installation surface:
Concrete, unperforated solid bricks, solid KS bricks

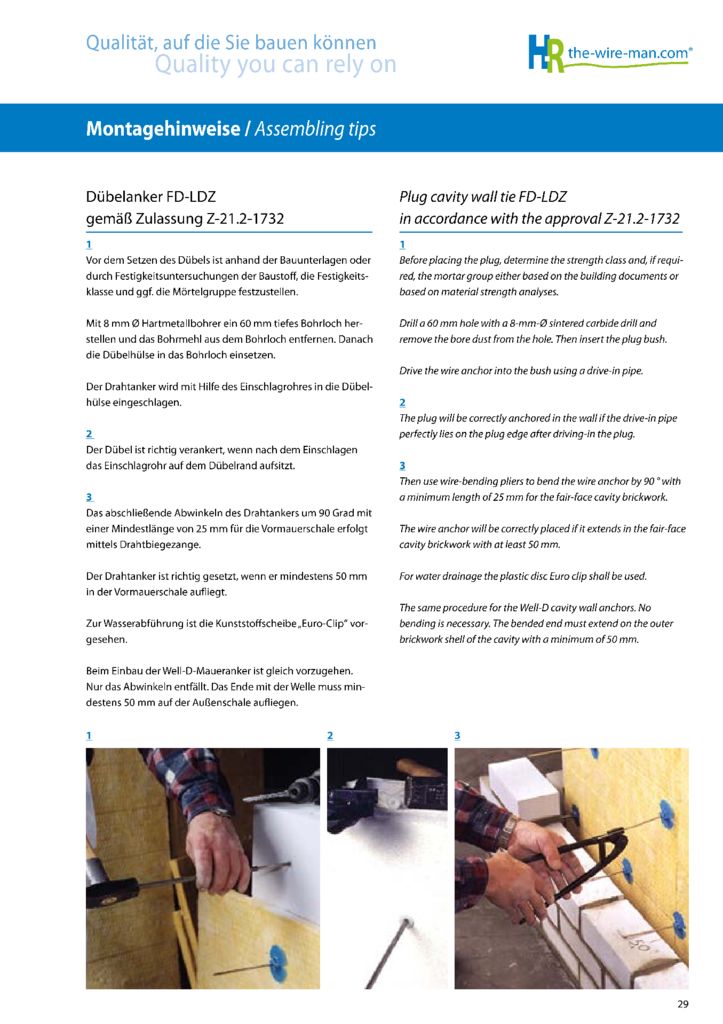

No bending required due to the shaft at the anchor end.
Z-21.2-1732
H&R GmbH air layer dowel anchor FD-LDZ
Building authority approved by DIBT Berlin.
Z-17.1-822
for cavity spacings up to 200 mm
Z-17.1-1142
for cavity spacings of 200 to 250 mm
| SKU | dimensions | cavity spacing up to | PU |
| 01062welle | 4 x 210 | 80 mm | 250 |
| 01063welle | 4 x 250 | 120 mm | 250 |
| 01064welle | 4 x 275 | 145 mm | 250 |
| 01065welle | 4 x 300 | 170 mm | 250 |
| 01255welle | 4 x 320 | 190 mm | 250 |
| 01223welle | 4 x 350 | 220 mm | 250 |
| 01222welle | 4 x 375 | 245 mm | 250 |
| 01224welle | 4 x 400 | 250 mm | 250 |
| 01228welle | 4 x 425 | 250 mm | 250 |
| 01225welle | 4 x 450 | 250 mm | 250 |
Special lengths on request
Actual anchor length = dimension minus 25 mm, as the anchors are no longer angled.
