Description
Stainless steel W.-Nr.: 1.4401, 1.4362
Set without pre-drilling and without dowels. Simply screw into wood using a screw-in adapter and a drill.
No bending required due to the shaft at the anchor end.
Installation surface:
Wooden construction
Building authority approved by DIBT Berlin for shell spacing
up to 250 mm.

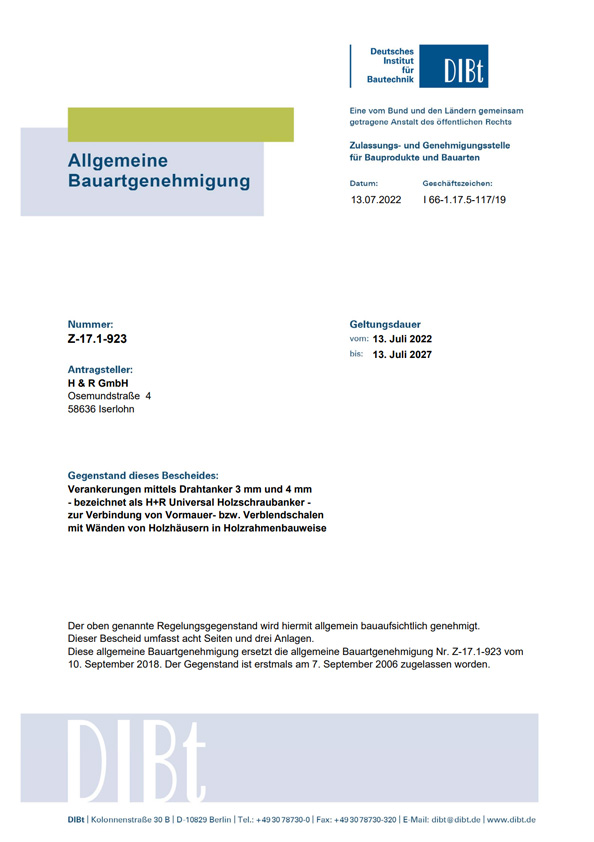

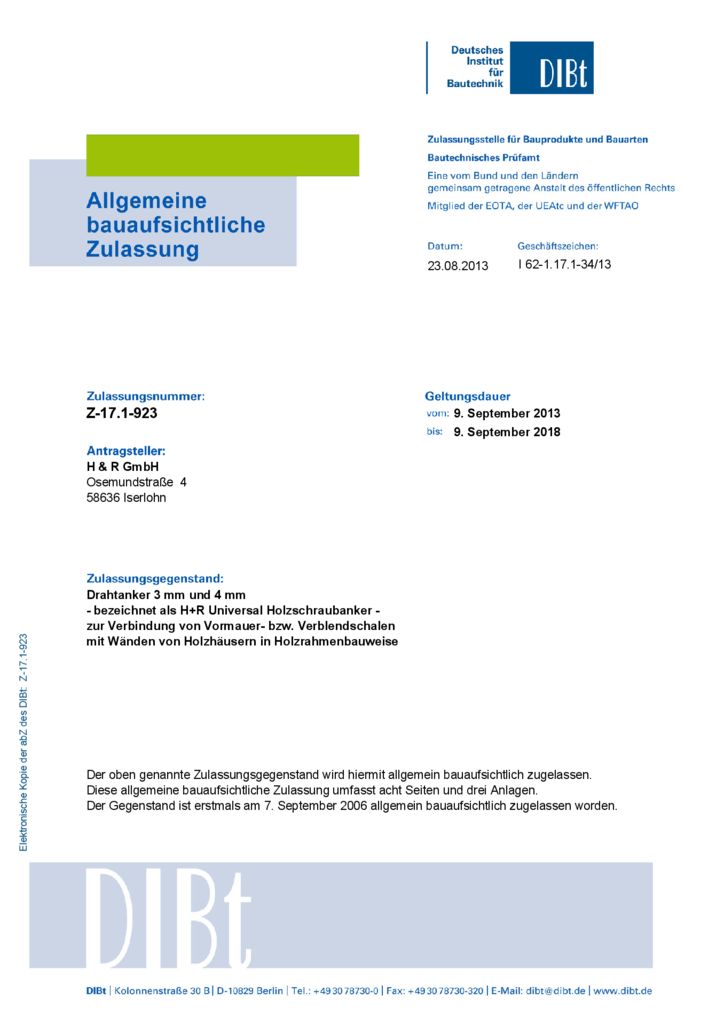

Z-17.1-923
for cavitiy spacings up to 250 mm
| SKU | Dimension | Cavity spacing up to | PU |
| 01066 | 3 x 180 | 70 mm | 250 |
| 01067 | 3 x 210 | 100 mm | 250 |
| 01068 | 4 x 190 | 75 mm | 250 |
| 01069 | 4 x 220 | 105 mm | 250 |
| 01070 | 4 x 260 | 145 mm | 250 |
| 01073 | 4 x 300 | 155 mm | 250 |
| 01074 | 4 x 320 | 185 mm | 250 |
| 01075 | 4 x 340 | 210 mm | 250 |
| 01076 | 4 x 365 | 230 mm | 250 |
| 01077 | 4 x 385 | 250 mm | 250 |
| 01072 | Drill-in-tool | for 3 + 4 mm anchor | 1 |
Downloads
