<p>Description</p>
For quick and safe processing. Made of stainless steel W. No.: 1.4401, 1.4362, 1.4571 or 1.4404 according to DIN EN 10088-2.
Building authority approved by DIBT BerlinZ-17.1-1192
Novelty: Installation with the seam facing upwards, of course approved by the building authorities!

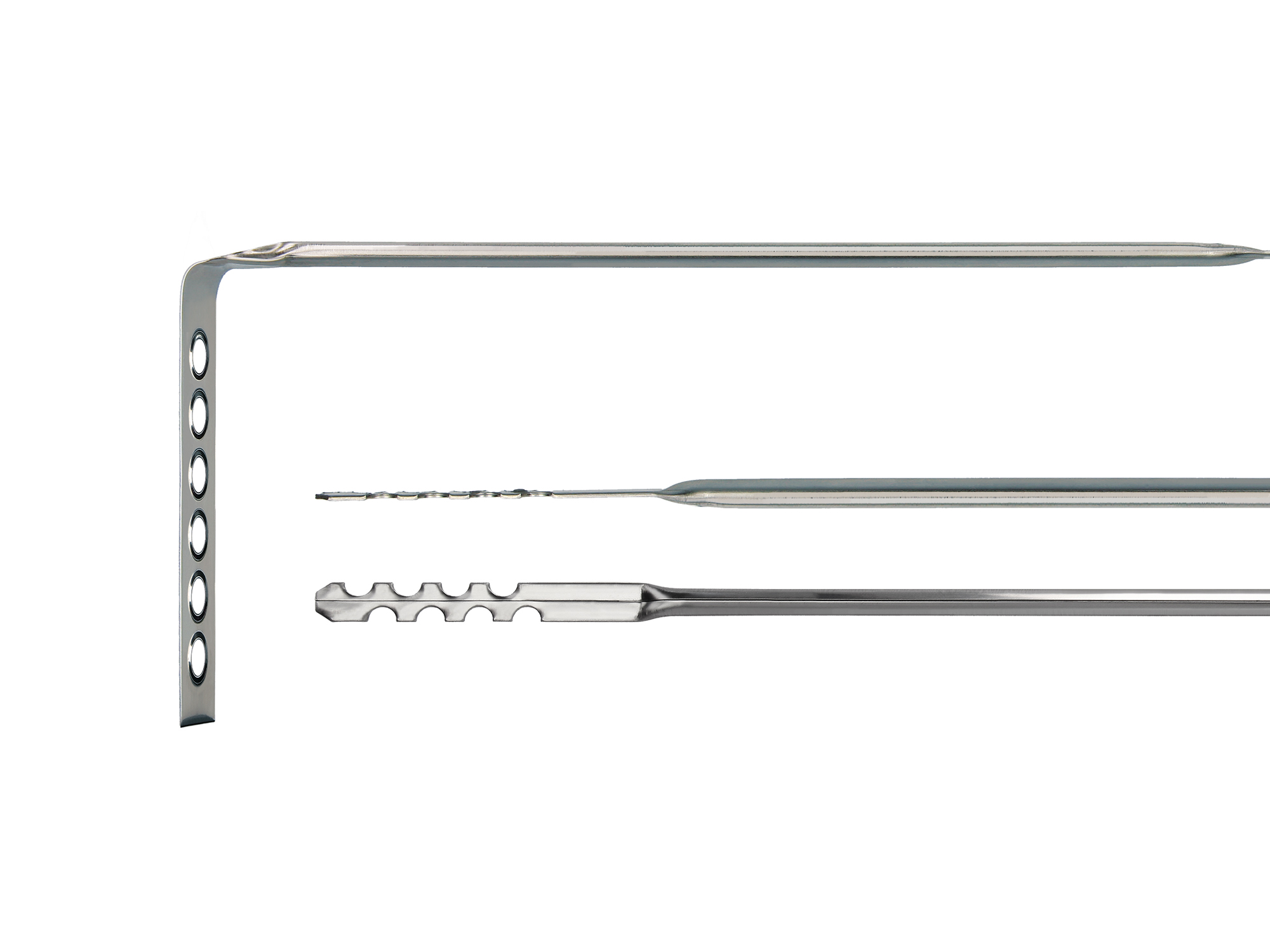

The BRIKKER 90 and the BRIKKER 90 Plus are delivered pre-angled.
This eliminates one step and means unpacking and installing straight away!
Mechanical pre-angling ensures installation after approval.
Installation substrate:
For all common stone-mortar combinations. Can be used in thin-bed and normal mortar joints.
Thanks to the innovative production method, anchor lengths of up to 500 mm can be produced and special problems can be solved! This means that the Brikker is already adapting to the larger cavity spacing and future requirements of the market.
Replaces conventional air layer anchor shapes such as: L-shape, universal anchor, corrugated L and other flat steel anchors. Can be used for building heights of up to 25 m above ground and a shell spacing of up to 250 mm. The adapted end makes it easier to apply the insulation. The punchings in the flat area of the anchor enable a secure and firm hold in the mortar bed. The building authority approval is in the approval process.
SKU | Discription | Dimension | Cavity spacing up to | PU |
290280 | Brikker90 280 | 4,5 x 280 | 140 mm | 250 |
290300 | Brikker90 300 | 4,5 x 300 | 160 mm | 250 |
290320 | Brikker90 320 | 4,5 x 320 | 175 mm | 250 |
